Keyboard |
61 keys semi–weighted
Velocity sensitive and after touch are supported |
System |
Upgradable Operating System
RX (Real eXperience)
DNC (Defined Nuance Control)
Multitasking, Load while play feature |
Tone Generator |
KORG EDS (Enhanced Definition Synthesis) sound generator:
128 Voices, 128 Oscillators
Filters with Resonance
Three band EQ for each track |
Effects |
Up to 4 Stereo Digital Multi-Effect block systems
125 Master Effect types + 2 Global Effects |
Voice Processor Technology by TC Helicon® with 4 Effects: |
Three-part Harmonizer, Reverb, Delay, plus Compressor, and EQ |
Sounds / Drumkits |
More than 1100, including Stereo Piano and GM/GS improved sound compatibility; more than 70 Drum Kits |
User area: |
512 Sounds, 128 Drum Kits
Defined Nuance Control (DNC) Technology |
Digital Drawbars: |
9 Footages |
Full Sounds/Drumkits editing capability |
|
User PCM RAM Memory: |
192 MB |
Full Sampling Editing |
Compatibility: Load/Import of Korg, Wav, AIFF and SoundFont™; Export of Wav and AIFF; Edit, Time Slice, Compression Tool. |
Styles |
More than 400 preloaded Styles, freely reconfigurable
1200 available Style locations including the Favorite banks
Eight Style tracks, 4 Single Touch Settings, 4 Pads and one Style Setting per Style
Guitar Track 2 mode, Parallel and Fixed NTT
Style Record with Step Record, Track and Event Edit functions
Style controls: 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Synchro Start/Stop, Tap Tempo/Reset, Bass Inversion, Auto Fill, Manual Bass, Memory, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, STS Mode |
Chord Sequencer |
Real-time Style Chord Sequencer Recorder |
Performance / STS |
320 Realtime Performance locations
STS: Memorize Realtime tracks settings, up to 4 x 1200 Styles, up to 4 x SongBook entries,“My Setting” function |
Song Play |
Patented XDS Crossfade Dual Sequencer Player (Supported formats: MID, KAR, MP3 + lyrics, MP3+G)
2 Players with separate Select, Start/Stop, Home, Rewind and Fast Forward controls
X-Fader Balance control
Lyrics, Score, and Chord data can be displayed on screen, or on external video monitor
Markers
Jukebox function |
Mp3 Player / Recorder |
Double Mp3 Player and Mp3 Recorder
Real Time Transpose (+6/-5 semitones)
Tempo change (±30%)
Vocal Remover
Record MP3 files including Styles, SMF, Real Time Tracks, Pads, Microphone and Effects |
Sequencer |
Quick Record (Backing Sequence)
Multitrack and Step Record functions – Full-featured sequencer
16 tracks; Up to 200,000 events
SMF native format |
SongBook |
Fully programmable music database, based on Styles, SMF, Karaoke, MP3 with automatic selection of Style Play and Song Play modes
User-definable custom lists
Filtering and Ordering options |
Compatibility |
“i-Series” models: Styles
Pa series: Style, Performance, Program/Sound, Song, SongBook, Pad |
Multi Pad |
4 Assignable Pads + Stop Button – Pad Record function |
General Controls |
Master Volume; Fade In/Out; Keyboard-Acc/Song Balance Volume; Ensemble; Octave Transpose; Master Transpose; Style Change; Quarter Tone and Arabic Scale memorized inside Performance/STS; Real-time controllers: Joystick (pitch + modulation); Mic Volume; FX Volume; Mic On/Off; Mic Preset; Harmony On/Off; 3 Assignable Switches; Tempo +/-; Tempo Lock; Dial; Search Function; Shift; Chord Scan; Split; Metronome On/Off; Sound Select |
Control Inputs |
Damper pedal (support half-pedaling with optional DS-1H pedal)
Assignable pedal/switch |
Mic/Line Input: |
Left/Mono-Mic, Unbalanced
With “Gain control and Right/Mono” |

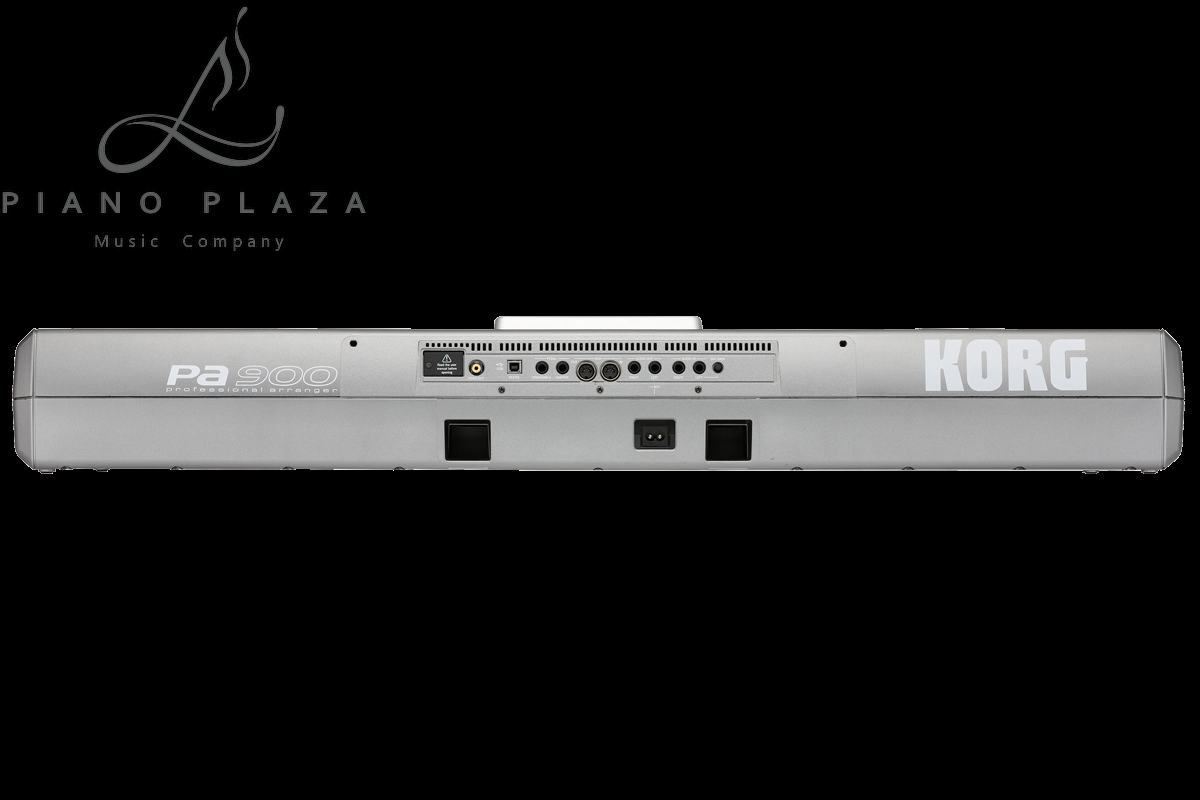

Outputs |
Audio Output:
- Left/Mono, Right/Mono, Unbalanced
Headphone Output:
Video Out:
|
Mic/Line Inputs |
2 Unbalanced Jack; Left/Mono-Mic, with gain control and Right/Mono |
MIDI |
In, Out; standard Midi connectors
USB to Midi using the USB Device port
8 user definable MIDI Setups |
USB |
USB-MIDI Interface
Type A: 1 (Front)
Type B: 1 (Rear)
2.0 Hi Speed connections |
Mass Storage/Disk |
Micro SD, back panel slot |
Display |
Color TouchView™ 7” TFT display |
Clock |
Internal System Clock |
Power Consumption |
20 Watt; 100-240v 50/60 Hz |
Dimensions (W x D x H) |
1,030 x 378.3 x 138.8 mm / 40.55 x 14.89 x 5.46 inches (without music stand); |
Weight |
10,76 kg / 23.72 lbs |
Accessories |
Manual, AC Power Cable, Music Stand, DVD-ROM |
Options |
EXP-2 – Expression/Volume Pedal
XVP-10 – Professional Expression/Volume Pedal
DS-1H – Damper Pedal
PS-1/PS-3 Switch Pedal |
